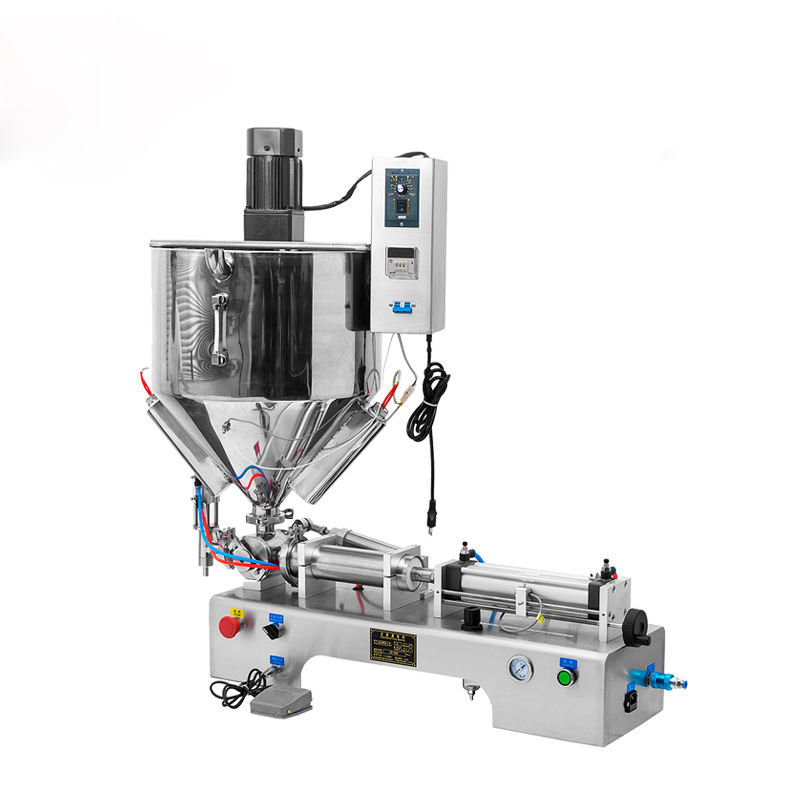

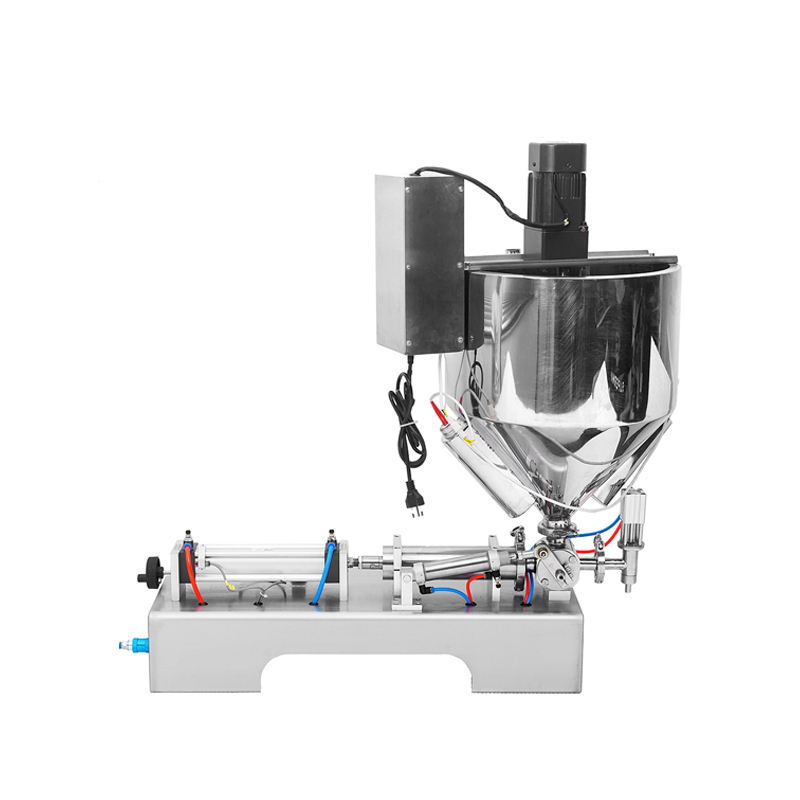

Pneumatic Piston Paste Cream Filling Machine with Mixing Hopper
Technical Parameters
model: LYSK-280
Voltage:220V 50Hz,10W
Filling error ≤0.5%
Filling range: 5-50ml
Filling speed :about 5-25 bottles/min
Filling nozzle diameter:10mm
Description
Technical Parameters
Paste Cream Filling Machine model: LYSK-280
Voltage:220V 50Hz
Power:10W
Filling error ≤0.5%
Filling range: 5-50ml
Filling speed :about 5-25 bottles/min
Filling nozzle diameter:10mm
size:106x35x35cm
Weight: 40kg
Features:
Driven by a cylinder and piston made from materials with one-way valves control the flow of materials;
Magnetic reed switch control cylinder itinerary can be regulated filling volume;
Rational design of the aircraft, model compact, easy to operate;
Advanced and high quality AirTAC pneumatic components;
Some contact materials are 316 L stainless steel materials, in line with the GMP requirements;
Filling volume and speed of filling can be arbitrary regulation, filling high accuracy;
Widely used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Pharmaceutical, and Chemical fields;
An ideal device for paste and high viscosity liquid filling.
