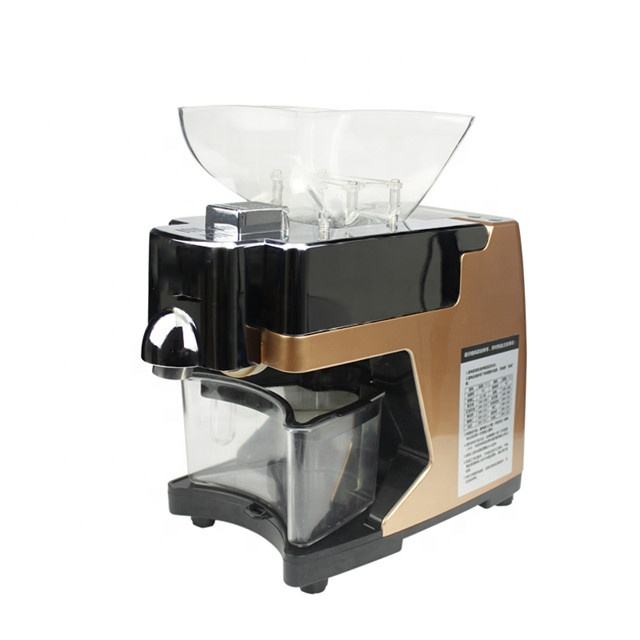

Home Oil Press Machine for Sunflower Soybean Nut Oil Making
Technical Parameters
Model Number LY-09
Capacity: 3- 6kg/hr
voltage 220v
Total power: 530W
weight 6.6kg
Machine dimension 460*420*220mm
Packing size 49cm x 25x 45cm
Description
Technical Parameters
Model Number LY-09
Capacity: 3- 6kg/hr
voltage 220v
Total power: 530W(Motor:100W,Heater:430W)
weight 6.6kg
Machine dimension 460*420*220mm
Packing size 49cm x 25x 45cm
Operation of manual oil extractor :
1. Make sure no impurities in the material before pressing.
2. At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
Cleaning of manual small oil press machine:
Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
