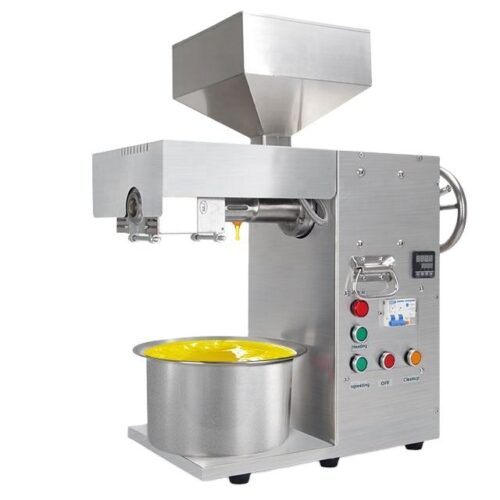

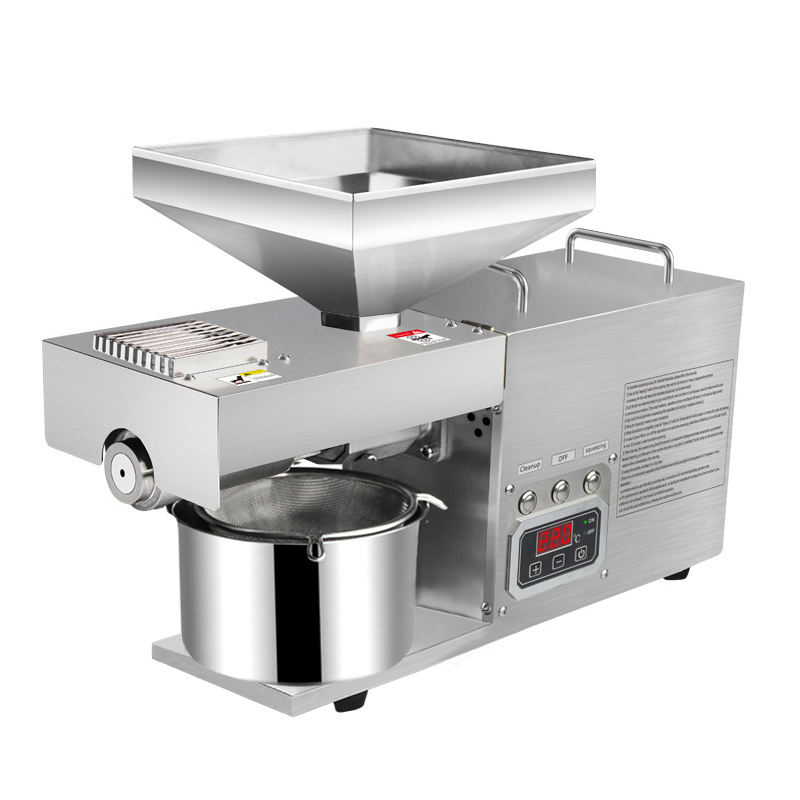

Cold Press Oil Machine for Commercial Nut Seed Processing
Technical Parameters
Model:LY-19
Capacity 7-10 Kg/Hr
Voltage 220v
Total power: 1150W(Motor:550W,Heater:600W)
Net Weight 18 Kg
Gross weight:23kg
Machine size 37*19*42cm
Package:41*29*63cm
Description
Technical Parameters
Model:LY-19
Capacity 7-10 Kg/Hr
Voltage 220v
Total power: 1150W(Motor:550W,Heater:600W)
Net Weight 18 Kg
Gross weight:23kg
Machine size 37*19*42cm
Package:41*29*63cm
Operation of manual oil extractor :
1. Make sure no impurities in the material before pressing.
2. At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
Cleaning of manual small oil press machine:
Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
